Tweener for Private Court Owners
Tweener LED Lighting can be a great solution for private tennis and pickleball court owners. Below you can learn more about the benefits of Tweener for private court owners and some of the technical specs for this lighting system:
BENEFITS FOR PRIVATE COURT OWNERS
Ability to be Installed Almost Anywhere
Tweener’s unique design permits it to be installed directly onto the fence at a height of 8-10 ft. and allows the system to be installed in places with unsuitable subsurface conditions or permitting restrictions.
Dimmable with Minimal Light Spillage
Tweener is dimmable linear lighting producing uniform court coverage while also reducing light spillage to less than 2 footcandles 10 ft outside of the court.
Customized to Your Court

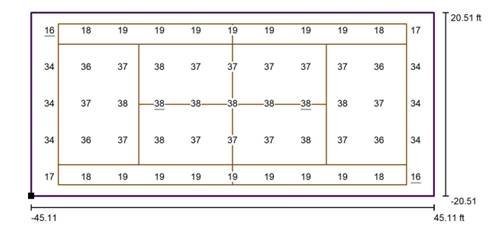

Our lighting experts will analyze your court and its surroundings to provide the proper photometric light levels and design a custom lighting plan to light your private court.
Ease of Installation
10-S Tennis Supply can put you in contact with a tennis court contractor to install the system for you but the system can also be self-installed. After the necessary power is run to the court by a certified electrician, the system can be installed by 2-3 people with basic tools in a matter of 1-2 days.
Cost Efficiency
Tweener can be purchased and installed for about half the price of traditional vertical lighting and saves customers more than 15% on their electric bills every year.
Single Tweener Technical Specs
Patented LED lighting system for 1 outdoor tennis court
To be installed on existing grid structure.
Including : 20 aluminum light bars, 2 power supply boxes (110 V), universal stainless steel mounting system and an installation manual.
LED power consumption 1800 W. Max power consumption 2200 W. IP 65. IK 08.
Horizontal illuminance: 300 lux, Uniformity of illuminance 0.7.
Color : BLACK - RAL 9005 or GREEN - RAL 6005
UL certified.
Warranty 5 years (components & workforce - return workshop).
Not included:
• System installation (Installation support on demand).
• Connection to the electrical network (must be carried out by an electrician)
• Adjustments or repairs to existing fence
• Shipping
Important information:
* Call for shipping estimate
* Packaging Size: 1 Crate: 13' 2" x 2' 5" x 1' 8" Weight: 500 lbs
• You will need to plan to have the staff and/or necessary equipment for unloading the crate(s)
Additional Electrical Information
Electrical Characteristics
Power Supply Box: 1200 W alimentation (In a waterproof case)
Input: 180-528 VAC
Frequency: 50-60 Hz
Power Consumption Max: 1800 W (900W each side)
Power Factor: > 0,9
Dimmable: 0-10V
Class of Protection Against Electrical Shock I
Breaker
2 electric lines (1 line per court side): 2 BREAKERS C – 16 (1 per line)
1 electric line (1 line for the court): 1 BREAKER D – 20 (For the court)
Cable Section
2,5 mm² (12-14 AWG): 196’ 10” per line / 98’ 5”
4 mm² (10-12 AWG): 196’ 10” < x < 328’ 1” per line / 98’ 5” < x < 164’
6 mm² (8-10 AWG): 328’ 1” per line / 164’
Download & Print this section
Tweener Qualifying Guide
